Innolux LCD Panel N080ICE-GB0 Rev.A0 8.0 inch 107.64×172.224 mm Active Area 114.6×184.1×3.5 mm Outline
INNOLUX N080ICE-GB0 Rev.A0 General Features
| Panel Brand : | INNOLUX |
| Panel Model : | N080ICE-GB0 Rev.A0 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.0 inch |
| Resolution : | 800(RGB)×1280 , WXGA |
| Display Mode : | AAS, Normally Black, Transmissive |
| Active Area : | 107.64×172.224 mm |
| Outline : | 114.6×184.1×3.5 mm |
| Surface : | Glare (Haze 0%), Hard coating, Antireflection |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 60% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | MIPI (4 data lanes) , 39 pins |
| Input Voltage : | 1.8/3.3V (Typ.)(VCC/VDDI) |
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
INNOLUX N080ICE-GB0 Rev.A0 Mechanical Features
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×1280 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 188 PPI |
| Aspect Ratio : | 10:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.04485×0.13455 mm (H×V) |
| Pixel Pitch : | 0.13455×0.13455 mm (H×V) |
| Weight : | 75g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating, Antireflection |
| Active Area : | 107.64×172.224 mm (H×V) |
| Outline Dimension : | 114.6×184.1 mm (H×V) |
| Outline Depth : | 1.9/3.5 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |
| F04801-01Z | Innolux | 4.8" | 540×960 |
| N133HSG-D31 | Innolux | 13.3" | 1920×1080 |

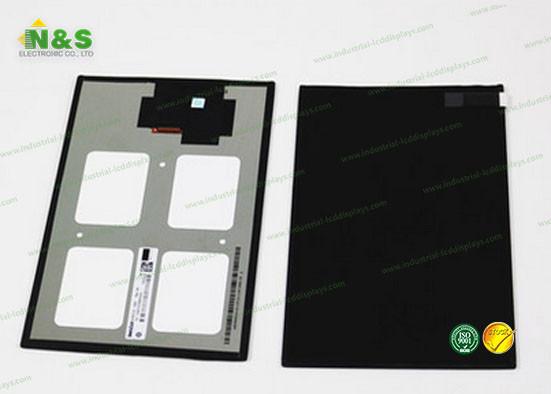

Details Pictures for Innolux LCD Panel N080ICE-GB0 Rev.A0
